The Intersection of Line and Parabola Example

Q: What are the coordinates of the point of contact if the line $y=m x+c$ will be a tangent to the parabola $y^2=4 a x ?$

If $D=0 \Rightarrow c=a / m$, the line $y=m x+c$ will be a tangent to the parabola $y^2=4 a x$. So, the coordinates of the point of contact is $\left(\frac{a}{m^2}, \frac{2 a}{m}\right)$

Q: If the line $y=m x+c$ and the parabola $y^2=4 a x$ have imaginary roots, what can you say about the line?

If the line $y=m x+c$ and the parabola $y^2=4 a x$ have imaginary roots that means $D<0$ or $\mathrm{c}>\mathrm{a} / \mathrm{m}$. So, the line doesn't meet the parabola.

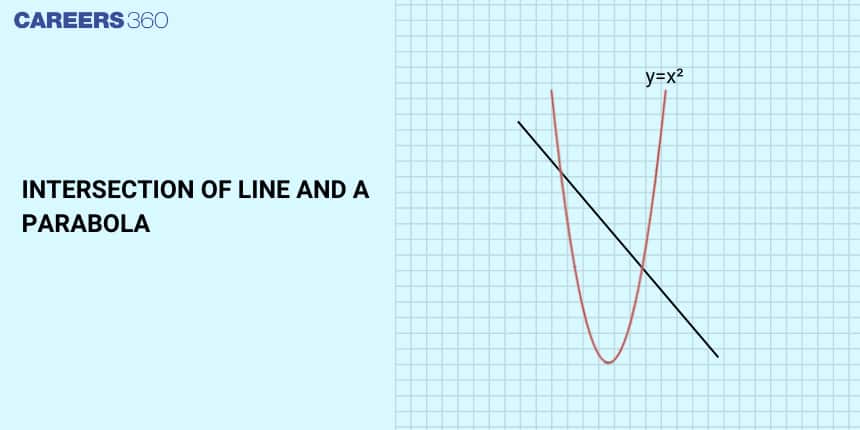

Intersection of Line and a Parabola

Edited By Komal Miglani | Updated on Feb 12, 2025 12:43 AM IST

A line may meet the parabola in one point or two distinct points or it may not meet the parabola at all. If the line meets the parabola at one point is called Tangent and If the line meets the parabola meets the parabola at two points it is called a chord. In real life, we use tangents in the construction and navigation field to calculate distances, heights, and angles.

JEE Main: Study Materials | High Scoring Topics | Preparation Guide

JEE Main: Syllabus | Sample Papers | Mock Tests | PYQs

This Story also Contains

Line and a Parabola
Point of contact
Solved Examples Based on Line and Parabola

Intersection of Line and a Parabola

In this article, we will cover the concept of the Line and a Parabola. This category falls under the broader category of Coordinate Geometry, which is a crucial Chapter in class 11 Mathematics. It is not only essential for board exams but also for competitive exams like the Joint Entrance Examination(JEE Main) and other entrance exams such as SRMJEE, BITSAT, WBJEE, BCECE, and more. A total of eighteen questions have been asked on JEE MAINS( 2013 to 2023) from this topic including two in 2020, one in 2022, and one in 2023.

Line and a Parabola

Lines are figures that are made up of infinite points extending indefinitely in both directions.

A line may meet the parabola in one point or two distinct points or it may not meet the parabola at all.

To get the point(s) of intersection, let us solve the equations of the parabola and the line simultaneously

Consider the standard equation of parabola $y^{2} = 4 a x$ and the line having equation $y = mx + c$ Parabola is $y^{2} = 4 ax$ and a line $y = mx + c$ then, $y^{2} = 4 a (\frac{y - c}{m})$

$\Rightarrow m y^{2} - 4 a y + 4 a c = 0$
The above equation is quadratic in $y$

Depending on the discriminant of this equation, if we have 2 real roots, then 2 dis If we have 2 equal roots, then we have only one point where line touches the para If we do not have any real roots, then line does not intersect the parabola

Case 1: If the line meets the parabola in two distinct points $(R$ and $Q)$ the equation has two distinct real roots.

$D ⩾ 0 or c < a / m$
Case 2: If the line meets the parabola in one point (P), i.e., touches the parabola then the equation has two equal roots.

$D = 0 or c = a / m$
Case 3: If the line doesn't meet the parabola then the equation has imaginary roots.

$D < 0 or c > a / m$

Condition of tangency: The line $y = m x + c$ will be a tangent to the parabola $y^{2} = 4 a x$ , if $D = 0 \Rightarrow c =$ $a / m$

Point of contact

Substitute the value of $c = a / m$ in the equation $m y^{2} - 4 a y + 4 a c = 0$

$\begin{aligned} m y^{2} - 4 a y + 4 a (\frac{a}{m}) = 0 \\ \Rightarrow m^{2} y^{2} - 4 a m y + 4 a^{2} = 0 \\ \Rightarrow (m y - 2 a)^{2} = 0 \\ \Rightarrow m y - 2 a & = 0 or y = \frac{2 a}{m} \end{aligned}$

Now, substitute the value of ' $y^{'}$ in $y = m x + \frac{a}{m}$ wre get, $x = \frac{a}{m^{2}}$
Hence, point of contact is $(\frac{a}{m^{2}}, \frac{2 a}{m})$

Solved Examples Based on Line and Parabola

Example 1: The parabolas: $a x^{2} + 2 b x + c y = 0$ and $d x^{2} + 2 e x + f y = 0$ intersect on the line $y = 1$ If $a, b, c, d, e, f$ are positive real numbers and $a, b, c$ are in G.P., then
[JEE MAINS 2023]
Solution: At $y = 1$ , Both curves intersect
$\Rightarrow \begin{array}{l} a x^{2} + 2 b x + c = 0 \\ d x^{2} + 2 ex + f = 0 \end{array}}$ Common Root
Given $a, b$ , and c are in G.P
$b^{2} = a c$
$\Rightarrow D = 4 b^{2} - 4 a c = 0$ for the first equation
$\Rightarrow$ Both the Root are equal
$∵$ sum of the roots $= - 2 \frac{b}{a}$

$\begin{aligned} α + α = - 2 \frac{b}{a} \\ α = - \frac{b}{a} \end{aligned}$
It satisfies the second equation also

$\begin{aligned} d {(- \frac{b}{a})}^{2} + 2 e (- \frac{b}{a}) + f = 0 \\ d (\frac{b^{2}}{a^{2}}) - \frac{2 e b}{a} + f = 0 \\ d (\frac{a c}{a^{2}}) - 2 e \frac{b}{a} + f = 0 \\ \frac{d}{a} - \frac{2 e b}{a c} + \frac{f}{c} = 0 \\ \frac{d}{a} - \frac{2 e b}{b^{2}} + \frac{f}{c} = 0 \Rightarrow 2 \frac{e}{b} = \frac{d}{a} + \frac{f}{c} \Rightarrow \frac{d}{a}, \frac{e}{b}, \frac{f}{c} are in AP \end{aligned}$

Hence, the answer is $\frac{d}{a}, \frac{e}{b}, \frac{f}{c}$ are in the AP

Example 2: If the line $y = 4 + kx, k > 0$ , is the tangent to the parabola $y = x - x^{2}$ at the point P and V is the vertex of the parabola, then the slope of the line through P and V is :
[JEE MAINS 2022]
Solution

$\begin{aligned} y = k x + 4 \\ y = x - x^{2} \end{aligned}$
$\begin{aligned} k x + 4 = x - x^{2} \\ x^{2} + (k - 1) x + 4 = 0 \\ (k - 1)^{2} - 4 \cdot 4 = 0 \\ k - 1 = \pm 4 \\ f k = 5 \end{aligned}$
Now put the value of $k = 5$

$\begin{aligned} 5 x + 4 = x - x^{2} \\ x^{2} + 4 x + 4 = 0 \\ (x + 2)^{2} = 0 \\ x = - 2 \\ y = - 6 \\ ff k = - 3 \end{aligned}$
Now put the value of $k = - 3$ in eqn (1)

$\begin{aligned} - 3 x + 4 = x - x^{2} \\ x^{2} - 4 x + 4 = 0 \\ x = 2 y = - 2 \end{aligned}$

Then the point of P is $(2, - 2)$ and $(- 2, - 6)$ and vertex of the parabola

$\begin{aligned} O^{'} = y - \frac{1}{4} = - \frac{1}{4} + x - x^{2} \\ y - \frac{1}{4} = - {(x - \frac{1}{2})}^{2} \end{aligned}$
Point $P$ is $(2, 2)$

Slope of

$OP = \frac{- 2 - \frac{1}{4}}{2 - \frac{1}{2}} = \frac{- 3}{2}$
Point $P$ is $(- 2, - 6)$ the slope of

$OP = \frac{- 6 - \frac{1}{4}}{- 2 - \frac{1}{2}} = \frac{5}{2}$
Hence, the answer is $\frac{5}{2}$

Example 3: If line $x + y = a$ and $x - y = b$ touch the curve $y = x^{2} - 3 x + 2$ at the pts where the curve intersects the $x$ -axis then $a / b =$ ?
[JEE MAINS 2020]
Solution: Given the equation of the Curve $y = x^{2} - 3 x + 2$
The curve intersects at X -axis $(1, 0)$ and $(2, 0)$
Now the curve $x + y = a$ and $x - y = b$ touch the curve $y = x^{2} - 3 x + 2$
at $(1, 0)$ and $(2, 0)$
$a = 1$ and $b = 2$
$a / b = 1 / 2$

Hence, the answer is the 1/2

Solution

$\begin{aligned} P = (3 t^{2}, 6 t), N = (3 t^{2}, 0) \\ M = (3 t^{2}, 3 t), Q = (\frac{3}{4} t^{2}, 3 t) \\ ∴ t = \frac{1}{3} \\ ∴ MQ = \frac{9}{4} t^{2} = \frac{1}{4} and PN = 6 t = 2 \end{aligned}$

Hence, the answer is MQ = 1/4

Example 5: Events $A, B, C$ are mutually exclusive events such that $P (A) = \frac{3 x + 1}{3}, P (B) = \frac{1 - x}{4}$ and $P (C) = \frac{1 - 2 x}{2}$ . The set of possible values of x is in the interval

Solution: Probability of occurrence of an event -Let $S$ be the sample space then the probability of occurrence of an event $E$ is denoted by $P (E)$ and it is defined as

$\begin{aligned} P (E) = \frac{n (E)}{n (S)} \\ P (E) \leq 1 \\ P (E) = lim_{n \to \infty} (\frac{r}{n}) \end{aligned}$

Where n repeated experiment and E occurs r times.

$\begin{aligned} 0 \leq P (A) \leq 1 \\ 0 \leq P (B) \leq 1 \\ 0 \leq P (C) \leq 1 \\ P (A) + P (B) + P (C) \leq 1 {Conditions on probability value \end{aligned}$

$Thus 0 ⩽ \frac{3 x + 1}{3} ⩽ 1$
$\Rightarrow - \frac{1}{3} ⩽ x ⩽ \frac{2}{3}$

$1 a$

$0 \leq \frac{1 - x}{4} \leq 1$
$\Rightarrow - 3 ⩽ x ⩽ 1$
$0 ⩽ \frac{1 - 2 x}{2} ⩽ 1$

$\Rightarrow \frac{- 1}{2} ⩽ x ⩽ \frac{1}{2}$
$\begin{aligned} P (A) + P (B) + P (C) ⩽ 1 \\ \Rightarrow \frac{3 x + 1}{3} + \frac{1 - x}{4} + \frac{1 - 2 x}{2} \leq 1 \\ \Rightarrow 4 (3 x + 1) + 3 (1 - x) + 6 (1 - 2 x) ⩽ 1 \\ \Rightarrow - 3 x + 0 ⩽ - 1 \end{aligned}$

$\begin{aligned} \Rightarrow x \geq \frac{1}{3} \\ (4) \\ From 1a,2a,3a and 4 we have \\ \frac{1}{3} ⩽ x ⩽ \frac{1}{2} \end{aligned}$

Hence, the answer is $[\frac{1}{3}, \frac{1}{2}]$

Frequently Asked Questions (FAQs)

1. What are lines?

Lines are figures that are made up of infinite points extending indefinitely in both directions. A line may meet the parabola in one point or two distinct points or it may not meet the parabola at all.

2. If the equation of parabola and line has 2 distinct roots, how many points of contact does this line have?

If the equation of parabola and line has 2 distinct roots ( $D > 0$ ) then, the line meets the parabola in two distinct points.

3. What is the condition of tangency?

If the line meets the parabola at one point, then the line is tangent. Condition of tangency: the line $y = m x + c$ will be a tangent to the parabola $y^{2} = 4 a x$ , if $D = 0 \Rightarrow c = a / m$

4. What are the coordinates of the point of contact if the line

y = m x + c

will be a tangent to the parabola

y^{2} = 4 a x ?

If $D = 0 \Rightarrow c = a / m$ , the line $y = m x + c$ will be a tangent to the parabola $y^{2} = 4 a x$ . So, the coordinates of the point of contact is $(\frac{a}{m^{2}}, \frac{2 a}{m})$

5. If the line

y = m x + c

and the parabola

y^{2} = 4 a x

have imaginary roots, what can you say about the line?

If the line $y = m x + c$ and the parabola $y^{2} = 4 a x$ have imaginary roots that means $D < 0$ or $c > a / m$ . So, the line doesn't meet the parabola.
